103186-3
Manufacturer:
TE Connectivity
Mfr.Part #:
103186-3
Datasheet:
Description:

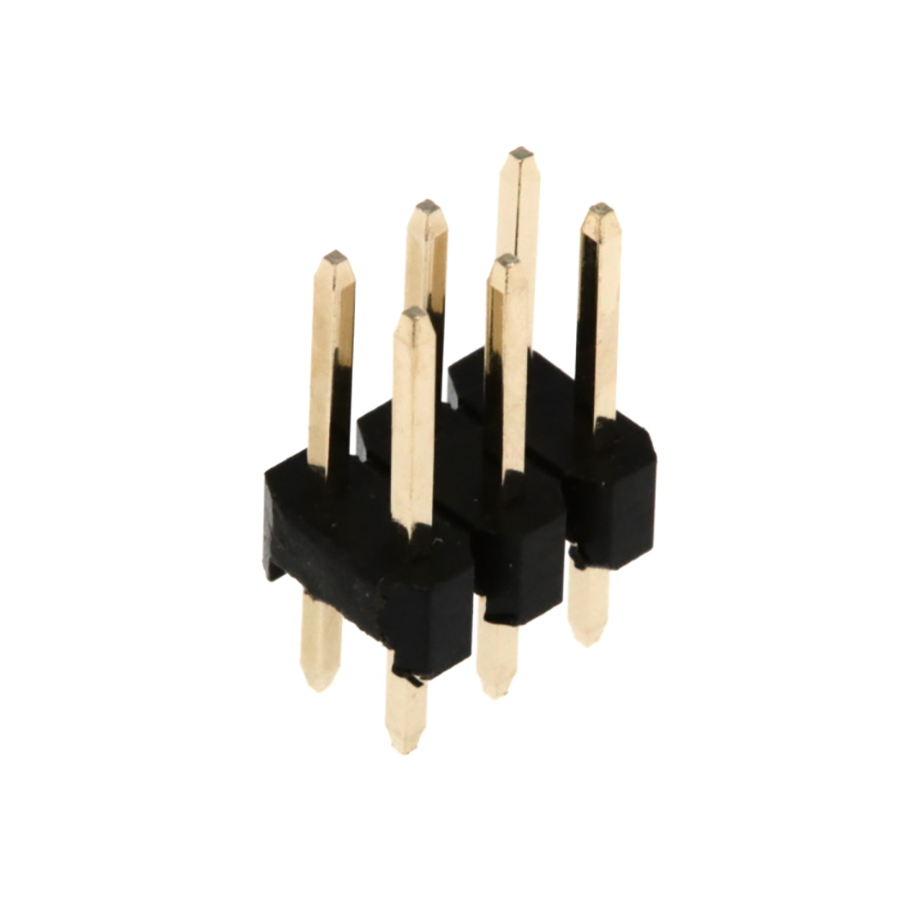

Headers and Wire Housings Through Hole Header, Pin, Plug Number of Positions:6 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 7.21 mm |
| Termination | Through Hole |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -65 °C |
| Packaging | Bulk |
| Depth | 4.88 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 5 GΩ |
| Contact Plating | Gold |
| Lead Length | 3.048 mm |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Gender | Male |
| Number of Contacts | 6 |
| ELV | Non-Compliant |
| Connector Type | Header, Pin, Plug |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Thermoplastic |
| Contact Style | Pin |
| Contact Current Rating | 3 A |
| Housing Color | Black |
| Keyed | No |
| PCB Mounting Orientation | Vertical |
| Contact Gender | Male |
| High Temperature Housing | No |
| Mating Post Length | 5.842 mm |
| Contact Shape | Square |
| High Speed Serial Data Connector | No |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Termination Post Length | 3.05 mm |
Stock: 3213
Distributors
pcbx
pcbxUnit Price$0.49415
Ext.Price$0.49415
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.49415 | $0.49415 |
| 10 | $0.42832 | $4.28320 |
| 25 | $0.39241 | $9.81025 |
| 50 | $0.28138 | $14.06900 |
| 100 | $0.20176 | $20.17600 |
| 300 | $0.19787 | $59.36100 |
| 500 | $0.19406 | $97.03000 |
| 1000 | $0.19032 | $190.32000 |
| 3000 | $0.18665 | $559.95000 |
| 5000 | $0.18305 | $915.25000 |
| 10000 | $0.17953 | $1795.30000 |
